Venetian Carousel

GC 12,50/2P

Double Decker Horses Merry-go-Round after the 18th century fashion.
The carousel consists of an hot-dip galvanised rotating structure supported by a central column and covered by hand decorated fibreglass panels on which lighting is fixed.

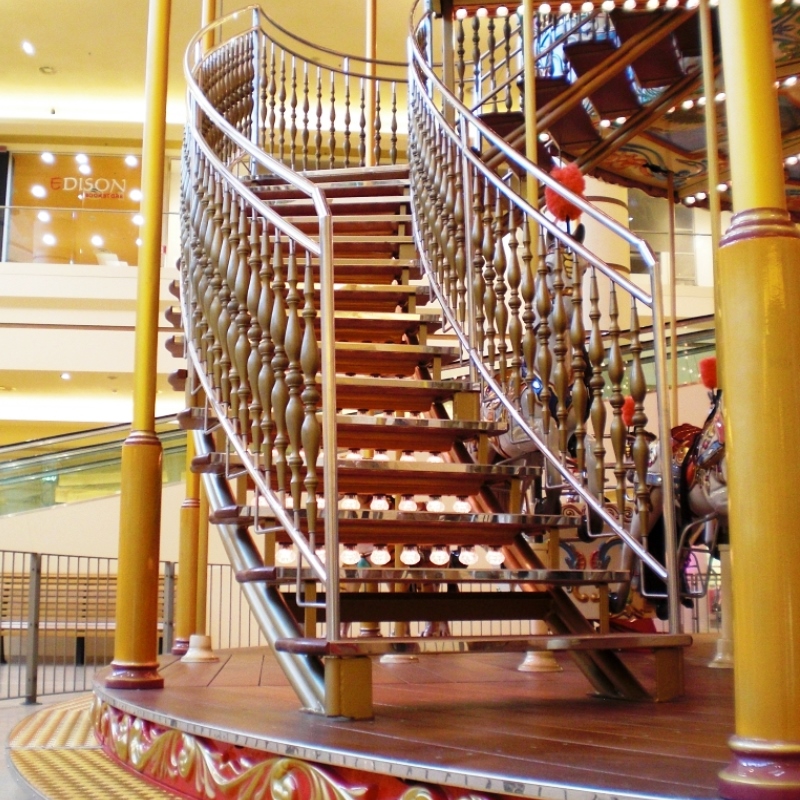

The two overlapped floors structure is suspended from the ground by tie-bars hanged to the roof and the floor surface consist of clear coated solid hard-wood panels. The second floor is accessible through two staircases.
The driving unit consist of AC self-braking gear-motor mounted to the central column and electronically controlled. All Jumping horses and the rocking chariot are moved by ball bearing mounted crankshafts located on the ceiling.

Minimum dimensions:Diameter m. 13,5 (44’3”) - Height m 10,5 (34’5”)
Maximum capacity:80/88 passengers (Adults / Children)
Maximum passengers/hour:1300 passengers/hour (4 min. cycle)
Total weight:240 kN (53000 Lbs) Empty - 312 kN (68600 Lbs) Full Loaded
Power Requirements:Total maximum power 60 kW (49 kW Lighting - 11 kW Motive Power)
